Multimodal Evaluation of Bethlem Myopathy with the c.788G > A Variant in the COL6A1 Gene: a case report with genetic, ultrasonographic, and structural-functional discordance correlations
Abstract
Introduction. Bethlem myopathy (BM) is a collagen-VI-related myopathy caused by mutations in the COL6A1, COL6A2, and COL6A3 genes. It is characterized by proximal muscle weakness, distal joint laxity, and contractures, with symptoms appearing during childhood and progressing slowly. Muscle ultrasound, using tools like the Heckmatt scale, complements genetic analysis and provides noninvasive insights into muscle pathology, particularly in atypical presentations.
Case Report. An 8-year-old male presented with muscle weakness since birth, delayed motor milestones, toe walking, and frequent falls. Family history revealed maternal-line neuromuscular disorders. Clinical examination showed hyporeflexia, thoracic hypotrophy, and decreased proximal muscle strength, alongside joint hypermobility and keratosis pilaris. Electromyography indicated a myopathic pattern in proximal upper limb muscles. Genetic analysis confirmed a pathogenic COL6A1 variant (c.788G>A, p.Gly263Asp). Ultrasound findings revealed advanced structural compromise with Heckmatt grade IV echogenicity in the deltoid, iliopsoas, and rectus femoris, indicating fatty infiltration and fibrosis. Functional tests, including Motor Function Measurement (MFM), showed adequate performance despite significant structural abnormalities.
Discussion. This case illustrates the diagnostic challenges of BM, characterized by phenotypic variability and the complexity of correlating structural and functional findings. Muscle ultrasound findings demonstrated advanced echogenic changes, but functional performance remained preserved, highlighting a mismatch between structural changes and functional outcomes.
Conclusion. This case underscores the importance of multimodal assessment in BM, integrating genetic, imaging, and functional evaluations. Further research is needed to clarify the relationship between structural changes and clinical performance in collagen VI-related myopathies.
Introduction
Bethlem myopathy (BM) is a collagen-VI-related myopathy caused by mutations in the COL6A1, COL6A2, and COL6A3 genes. Collagen VI is a ubiquitous extracellular matrix protein that forms a microfibrillar network closely associated with the basement membrane in various tissues, including muscle, cartilage, and skin 1,2. BM is characterized by mild proximal muscle weakness, distal joint laxity, and contractures, with symptoms typically appearing during childhood and progressing slowly. Unlike the more severe Ullrich congenital muscular dystrophy (UCMD), BM represents the mildest phenotype within the spectrum of collagen-VI-related myopathies. The classification of phenotypes related to collagen VI-related myopathies (COL6-RM) is primarily based on ambulation ability. According to the consensus reached at the 166th International Workshop of the European Neuromuscular Centre (ENMC), three clinical forms are identified: UCMD (Ullrich Congenital Muscular Dystrophy), which includes patients who have never walked or who lost ambulation before the age of 12; the intermediate form (INTM), referring to those who lose ambulation during adolescence; and BM (Bethlem Myopathy), which applies to patients who retain the ability to walk into adulthood 3. Laboratory findings often reveal slightly elevated creatine kinase (CK) levels, while imaging studies, including MRI and muscle ultrasound, demonstrate fatty infiltration and structural alterations in affected muscles 2,4.
Muscle ultrasound has emerged as an indispensable tool for evaluating neuromuscular diseases, offering valuable insights into muscle architecture and pathology in a noninvasive and efficient manner. In BM, distinct echogenicity patterns, such as the “central shadow sign,” have been reported, reflecting unique myopathic processes 5. The semiquantitative Heckmatt scale is commonly employed to grade muscle involvement, aiding in the differentiation of BM from other neuromuscular disorders 5. Additionally, ultrasound findings can complement genetic analysis, particularly in atypical presentations or when invasive methods, such as muscle biopsy, are not feasible 5.
This case report presents an 8-year-old male with a pathogenic variant in the COL6A1 gene (c.788G > A, p.Gly263Asp). This mutation was previously reported by Morel et al. in a case of Bethlem myopathy with loss of ambulation at 57 years of age, highlighting the phenotypic variability of this variant 6.
This case illustrates the discrepancy between severe structural muscle involvement and seemingly adequate functional performance in a pediatric patient with Bethlem myopathy, highlighting the limitations of functional scales like the MFM when used in isolation. The literature lacks studies that systematically integrate ultrasound findings, objective strength measured by dynamometry, and functional performance, particularly in children. It provides useful evidence to better understand the value of multimodal assessment in this spectrum of myopathies. The objective of this case is to contribute to the understanding of the relationship between structural changes and functional outcomes in Bethlem myopathy, emphasizing the importance of integrating various diagnostic tools for a more comprehensive clinical evaluation.
Case report
An 8-year-old male from Colombia presented with muscle weakness since birth and delayed motor milestones. At 2 years of age, he began toe walking and experienced frequent falls. Laboratory tests revealed elevated creatine kinase (CPK) levels of 814 U/L, consistent with muscle pathology. The family history revealed a maternal lineage of neuromuscular disorders, including progressive weakness, motor disability, respiratory complications, and premature deaths affecting his maternal grandmother, mother, six uncles, and cousins. At the time of evaluation, the patient walked independently but was unable to run or jump. He reported difficulty climbing stairs and performing fine motor tasks such as buttoning clothes, although his handwriting was legible. Episodes of coughing and choking while swallowing solid foods were also reported, suggesting oropharyngeal involvement.
On physical examination, notable findings included a high palate, thoracic hypotrophy, hyporeflexia in the upper limbs, areflexia in the lower limbs, and decreased proximal muscle strength. Additional observations included keratosis pilaris and joint hypermobility in the extremities (Fig. 1).
Electromyographic studies demonstrated a recruitment pattern of early filling, compound muscle action potentials of low amplitude and short duration, and unstable polyphasic units. These findings were consistent with a primary myopathic process, predominantly involving the proximal muscles of the upper limbs, such as the biceps and deltoids. Quantitative interference pattern analysis (IPA) revealed an increased number of turns per second and a decreased average amplitude of turns, further supporting the diagnosis of myopathy. Functional evaluations were performed to complement the imaging and genetic findings. As shown in Table I, the Motor Function Measurement (MFM) scores indicated adequate performance for standing, axial, and distal motor tasks, despite significant muscle weakness demonstrated by dynamometry, where deltoid strength was only 16.3% of the expected mean value for children of the same age, based on normative data reported by Beenakker et al.
Genetic testing through clinical exome sequencing confirmed a pathogenic heterozygous variant in the COL6A1 gene (c.788G > A, p.Gly263Asp), consistent with the autosomal dominant Bethlem myopathy 1 phenotype.
Muscle ultrasound findings revealed significant abnormalities, graded using the semiquantitative Heckmatt scale. Increased echogenicity and granular hyperechogenic foci were observed in multiple muscle groups, including the deltoid, biceps, iliopsoas, rectus femoris, and tibialis anterior. These findings produced a homogeneous “ground glass” appearance, indicating extensive replacement of muscle fibers by fat and fibrosis as the disease progressed (Fig. 2).
Discussion
Bethlem myopathy (BM) represents the mildest phenotype within the spectrum of type VI collagen-related myopathies. This case of an 8-year-old male with a confirmed heterozygous pathogenic variant in the COL6A1 gene (c.788G > A, p.Gly263Asp) highlights the phenotypic variability of BM and its diagnostic challenges. The patient exhibited classic clinical features, including mild proximal weakness, delayed motor development, and joint hypermobility, alongside less typical findings such as severe upper limb involvement. Muscle ultrasound findings demonstrated advanced echogenic changes consistent with Heckmatt grades III and IV, reflecting significant structural compromise. Despite these findings, functional assessments such as the Motor Function Measurement (MFM) revealed preserved motor performance, highlighting a mismatch between structural and functional evaluations.
BM typically manifests in childhood with proximal weakness, distal joint laxity, and joint contractures developing by the end of the first decade 2. Although primarily inherited in an autosomal dominant manner, rare autosomal recessive cases have been reported 1. Laboratory findings often include mildly elevated creatine kinase (CK) levels, while imaging studies, such as MRI, demonstrate characteristic fatty infiltration, particularly in the anterior thigh muscles. The clinical variability observed in this case, particularly the severe upper limb involvement, aligns with previous reports, such as a Korean case series, which documented differences in symptom onset, muscle involvement, and joint contractures 4. These findings underscore the phenotypic heterogeneity of BM and its overlap with other collagen VI-related myopathies.
Muscle ultrasound has proven invaluable in evaluating neuromuscular diseases, offering both semiquantitative and quantitative assessments of muscle architecture. Healthy muscle typically appears anechoic with scattered hyperechoic foci, creating a “starry night” pattern on ultrasound 7. In BM, the Heckmatt scale is widely used to grade echogenicity, with higher grades indicating more extensive fatty infiltration and fibrosis 8. In this case, grade IV echogenicity in muscles such as the deltoid and iliopsoas indicated advanced structural compromise. Quantitative grayscale analysis complements this by providing objective metrics that correlate with disease severity 9. These techniques, when used together, demonstrate moderate correlation, with higher Heckmatt grades typically associated with increased grayscale values 10.
The ultrasonographic findings in BM are distinct from neurogenic changes, which often present with a heterogeneous “moth-eaten” pattern reflecting areas of denervation and fibrosis 10. In contrast, BM is characterized by a fine granular echogenic pattern or the “ground glass” appearance observed in this case. A unique “central shadow sign” has also been described in BM, attributed to echo density around the central fascia of the rectus femoris muscle, further distinguishing it from other neuromuscular disorders 5. These imaging features enhance the diagnostic specificity of muscle ultrasound, particularly when used in conjunction with genetic testing.
Functional tests, such as the MFM and up-and-go, revealed preserved motor performance in this patient, despite significant structural abnormalities detected by ultrasound.
Although the patient is still able to walk independently, he presents with marked weakness in the knee extensors, with quadriceps strength measured at 46 N on the right and 48 N on the left – approximately 26% of the normal value for his age and sex. He also exhibits significant motor limitations, including the inability to run, jump, or climb stairs with ease. This pattern of weakness has been observed in adults with COL6-RM who have lost ambulation, whereas ambulatory patients typically show higher strength values. While these findings may suggest a progression toward a more severe form within the COL6-RM spectrum, it is important to consider that Bethlem myopathy is also characterized by variable progression, and many patients retain the ability to walk into adulthood despite significant weakness 11.
In this case, a notable discrepancy was observed between functional performance and objective muscle strength. Although the Motor Function Measurement (MFM) scale indicated adequate performance across all three domains – standing (89/89), axial (97/97), and distal motor function (80 right, 95 left), with a total score of 90 – the dynamometry results revealed markedly reduced muscle strength: deltoid 14-16 N (16.3%), biceps 18-20 N (14.5%), psoas 48-49 N (21.8%), quadriceps 46-48 N (25.9%), and tibialis anterior 21-28 N (20.4%). This mismatch likely stems from the ordinal nature of the MFM, which assigns equivalent scores to movements that demand significantly different levels of force. Consequently, the scale may obscure the actual severity of muscle weakness. This case underscores the value of combining functional assessments with objective measures such as dynamometry and muscle ultrasound to achieve a more accurate and comprehensive clinical evaluation.
This finding aligns with prior studies that suggest a mismatch between structural and functional evaluations in BM and other neuromuscular diseases 12. Quantitative dynamometry, however, revealed suboptimal muscle strength, correlating directly with the severity of ultrasound abnormalities. This observation emphasizes the need for integrating structural and functional assessments to fully understand the clinical impact of BM.
Conclusion
Bethlem Myopathy is a rare and genetically heterogeneous disorder, presenting with a range of clinical features, including proximal muscle weakness, delayed motor milestones, joint hypermobility, and, in some cases, severe upper limb involvement. The phenotypic variability and diagnostic challenges of BM are highlighted in this case, where a patient with a heterozygous COL6A1 gene mutation displayed significant structural muscle abnormalities detected by ultrasound, yet maintained relatively preserved motor function based on the MFM scale. This discrepancy underscores the limitations of functional assessments like the MFM, which may not fully capture the extent of muscle weakness. Muscle ultrasound and dynamometry proved essential in offering a more comprehensive evaluation, emphasizing the importance of integrating structural and functional assessments for accurate diagnosis and clinical management. This case illustrates the need for an individualized approach in managing BM, considering both genetic and objective clinical findings.
Acknowledgements
The authors would like to express their gratitude to the patient and his familiy for their participation in this case report.
Conflict of interest statement
The authors declare that they have no competing interests.
Funding
No funding has been secured for this study.
Authors contribution
WSHM and JCGG contributed to the conceptualization of the study and the development of the methodology. WSHM, FOC, and PVMH were responsible for data acquisition, while data analysis and interpretation were carried out by WSHM, FOC, and CCA. The original draft of the manuscript was prepared by WSHM, with critical review and editing performed by JCGG and PVMH. FOC supervised the overall project. All authors reviewed and approved the final version of the manuscript for publication.
Ethical consideration
This study was approved by the Ethics Committee of the Roosevelt Institute, Bogota, Colombia. Written informed consent was obtained from the patient’s legal guardian for publication and any accompanying images. A copy of the written consent is available for review by the Editor-in-Chief of this journal.
Availability of Data and Materials
The data sets analysed in the current study are available from the corresponding author upon reasonable request.
History
Received: February 4, 2025
Accepted: June 12, 2025
Figures and tables
Figure 1. Ligamentous hyperlaxity in Bethlem myopathy. Demonstration of ligamentous hyperlaxity in the fingers, characterized by excessive extension of the interphalangeal joints, a common clinical feature associated with Bethlem myopathy.

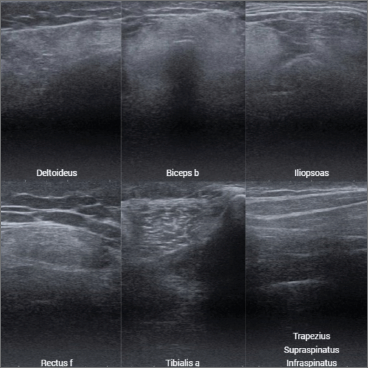

Figure 2. Ultrasonographic findings in Bethlem myopathy. Composite ultrasound images showing increased echogenicity and architectural disruption in multiple muscle groups, graded using the Heckmatt scale. Findings include: Deltoid (Heckmatt IV), Biceps (Heckmatt III), Iliopsoas (Heckmatt IV), Rectus femoris (Heckmatt IV), Tibialis anterior (Heckmatt III), and Supraspinatus (Heckmatt III). These abnormalities indicate significant fatty infiltration and fibrosis, characteristic of advanced muscle involvement in Bethlem myopathy.
Functional Testing | |||
---|---|---|---|
Test | Measured Value (Right) | Measured Value (Left) | Performance |
Standing (MFM) | 89 | 89 | Adequate |
Axial Motor (MFM) | 97 | 97 | Adequate |
Distal Motor (MFM) | 80 | 95 | Adequate |
Total MFM Score | 90 | 62 | Adequate |
Up & Go (Seconds) | 5 | 8 | Minimal fall risk |
Dynamometry Results | |||
Muscle Group | Measured Strength (Newtons) | Percentage of Normal | |
Deltoid | 14 (R), 16 (L) | 16.3% | |
Biceps | 20 (R), 18 (L) | 14.5% | |
Psoas | 48 (R), 49 (L) | 21.8% | |
Quadriceps | 46 (R), 48 (L) | 25.9% | |
Tibialis Anterior | 21 (R), 28 (L) | 20.4% | |
Abbreviations: MFM: Motor Function Measurement; R: Right; L: Left; Up & Go: Timed Up and Go test. |
